PROFESSIONAI SPORTS LIGHTING MANUFACTURER
With strong experience, gesp light is specialized in customizing sports lighting solutions for stadium, football pitch, tennis court, basketball courts and etc.
Sport Lighting

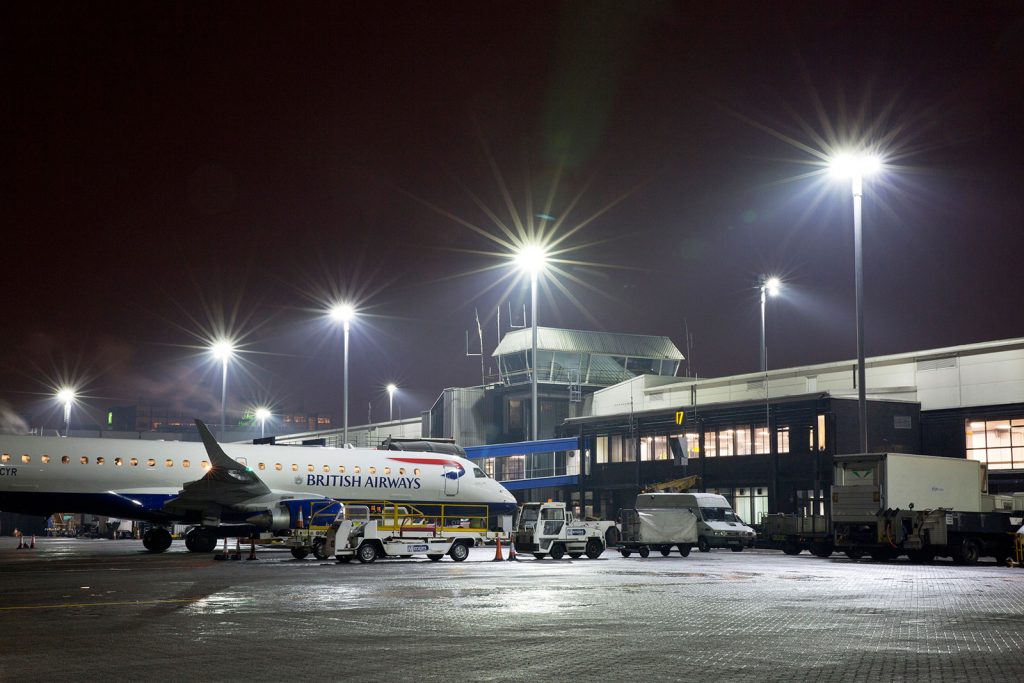

Area Lighting

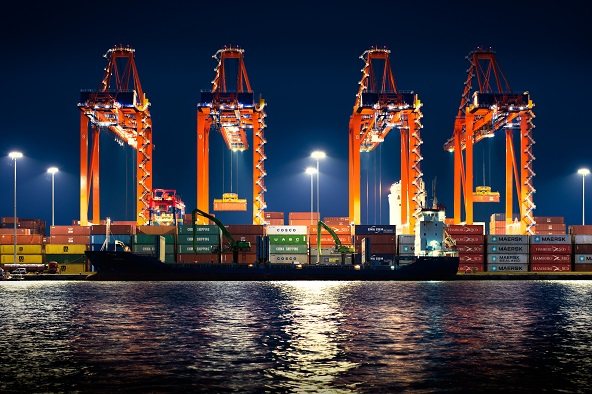

port Lighting
Industry Lighting
Sport Lighting
modular design Stadium Lighting GLJ Series Stadium Lighting 200W-1200W Uniform Illumination The lamp is made of aviation aluminum, which is lightweight and easy to install. Shell protection grade IP67, waterproof and dustproof; A variety of light distribution options to adapt to various site requirements;
modular design Stadium Lighting GLZ Series Stadium Lighting 200W-1600W Uniform Illumination。 Multiple light distribution options to meet different sports venue lighting needs

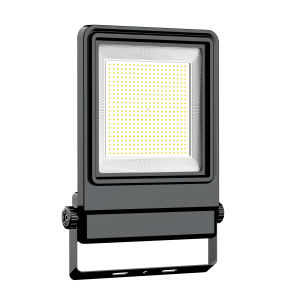

GLX Series Stadium Lighting 100W-400W Uniform Illumination。20%-30% lighter:,easier to install Stylish appearance and ultra-thin Design,effectively reduces the wind resistance area Laser focus:,Precisely target the area that needs illumination.Angle adjustment and rotation: Easily lock the angle of assembly and rotation
modular design Stadium Lighting GLW Series Stadium Lighting 300W-1800W Uniform Illumination。 The shape is designed with a shading plate to facilitate light collection and anti-glare.
GLU Series Stadium Lighting 100W-240W Uniform Illumination。 made of aviation aluminum, which is lightweight and easy to install

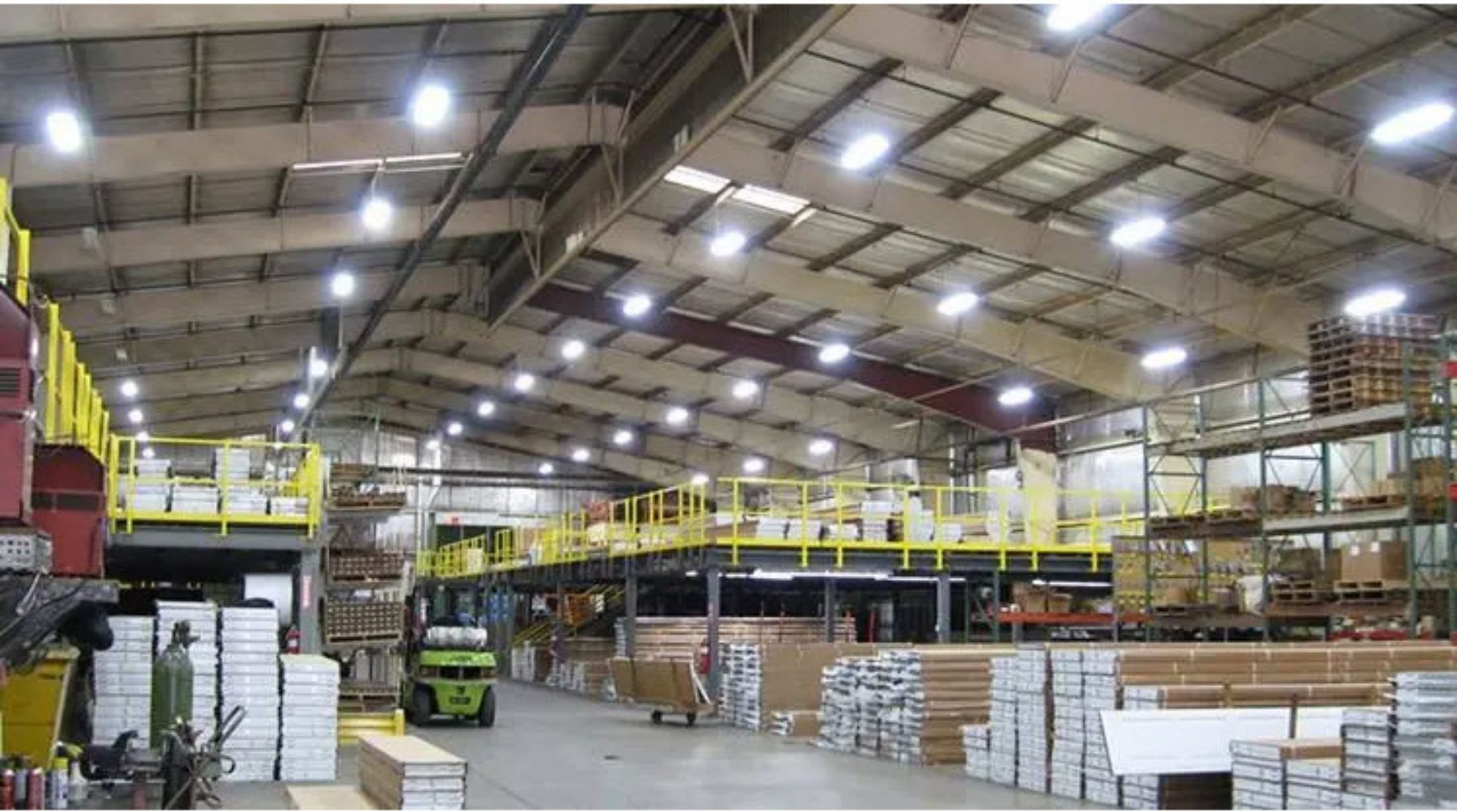

Industrial Lighting
The shell is made of high-hardness aluminum alloy material, and the outer surface is electrostatically sprayed with plastic. The anti-corrosion grade reaches WF2. It will not rust or corrode for long-term use in harsh environments; Power adjustable, from 100W-240W
modular design Stadium Lighting GLZ Series Stadium Lighting 200W-1600W Uniform Illumination。 Multiple light distribution options to meet different sports venue lighting needs

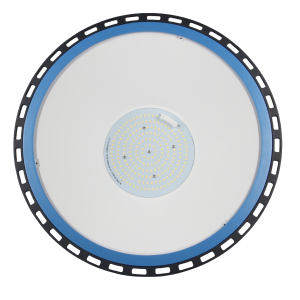

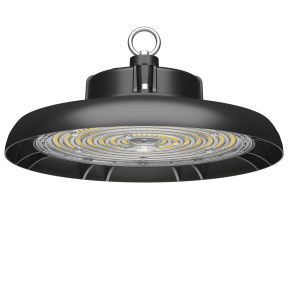

A classic industrial and mining lighting product The lamps have fine workmanship and unique shapes, and can be installed in a variety of ways, such as hanging ring type or ceiling type. Using a wide voltage constant current drive power supply, the light is stable, no stroboscopic, professional light distribution PC lens, 40°60°90°120° optional, accurate light output, light transmittance >92%:

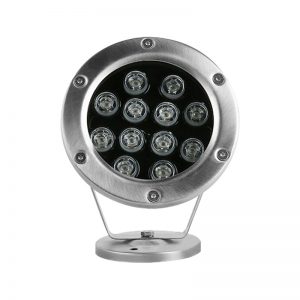

Very classic LED underwater floodlight The shell is fully sealed with 304 stainless steel and has an anti-corrosion grade of WF2. It will not rust or corrode for long-term use in harsh environments such as high oil and high acidity; ·The lamp’s protection level is IP68 and can be submerged under 3 meters of water to work normally; ·Easy to install, adjustable illumination angle

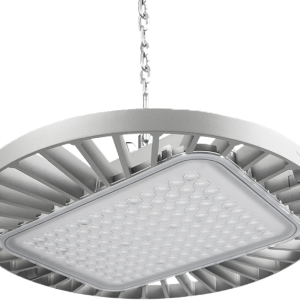

Effective cooling : the fixture is designed with a fin type heat sink, which means it acts like a radiator to dissipate heat. Extremely long life reduces re-lamp frequency. Save labor cost to replace bulbs with short lifespan. -Super bright: Bring the best and brightest lighting to your application with an incredible minimum Illuminate the darker corners of your work space.
Cases And Practical Application Experience in Stadium Lighting Solutions

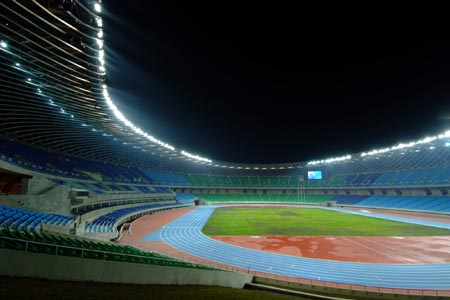

Multiple sports events are held simultaneously on the track and field, and the camera requires both long-distance panoramic and close-up shots. Especially when it is necessary to follow a target flying at high speed in the air, the camera should have different requirements for lighting.

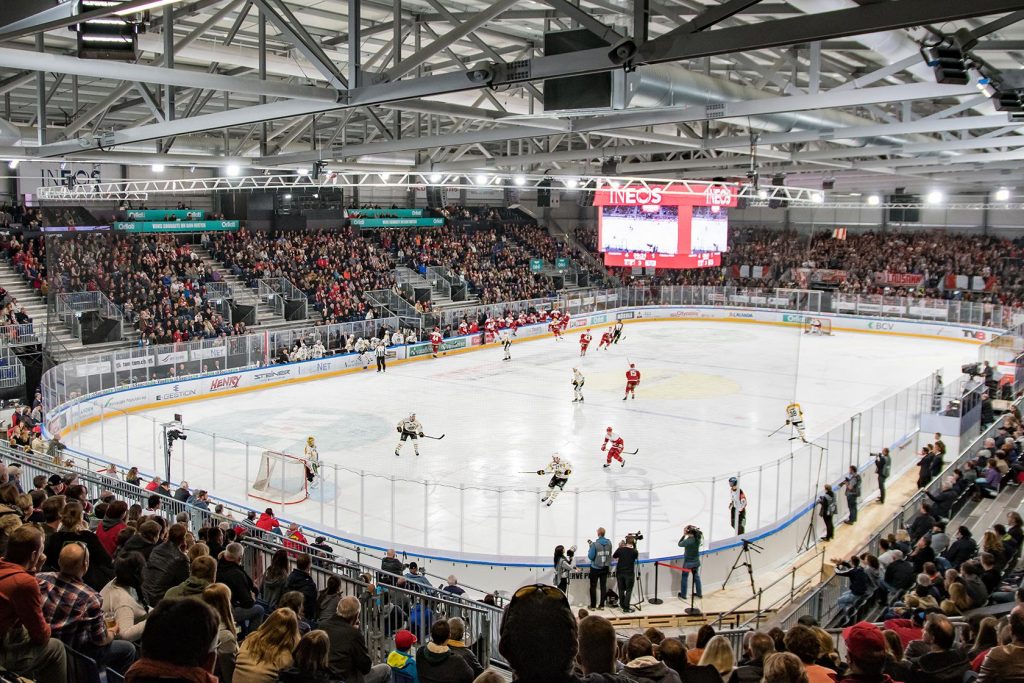

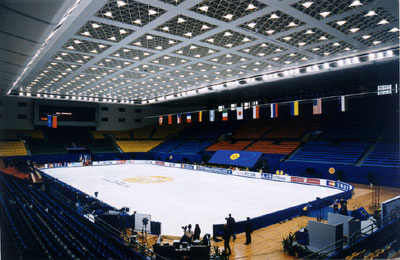

In order to ensure that ice athletes and spectators can track fast-moving athletes and clearly see the detailed movements of athletes, ice sports competitions must have a high lighting level, especially in large stadiums, because the spectators are quite far away from the sports venue. To be able to see the game clearly, especially the tiny details, ice sports require a very high level of lighting. The visibility of a moving object depends on the size, speed and brightness contrast of the object and its background and ambient brightness.

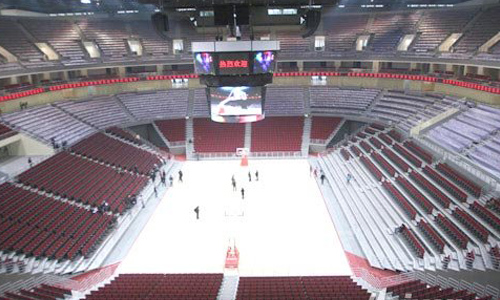

The lighting of sports venues is an important part of stadium design and is relatively complex. It must not only meet the requirements of athletes for competition and spectators, but also meet the requirements for color temperature, illumination, illumination uniformity, etc. of lighting for filming movies and live TV broadcasts. This requirement is far higher than that of athletes and spectators. In addition, the lighting arrangement must be closely coordinated with the overall planning of the stadium and the structural form of the stands. In particular, the maintenance of lighting equipment is closely related to architectural design. A comprehensive consideration must be made.

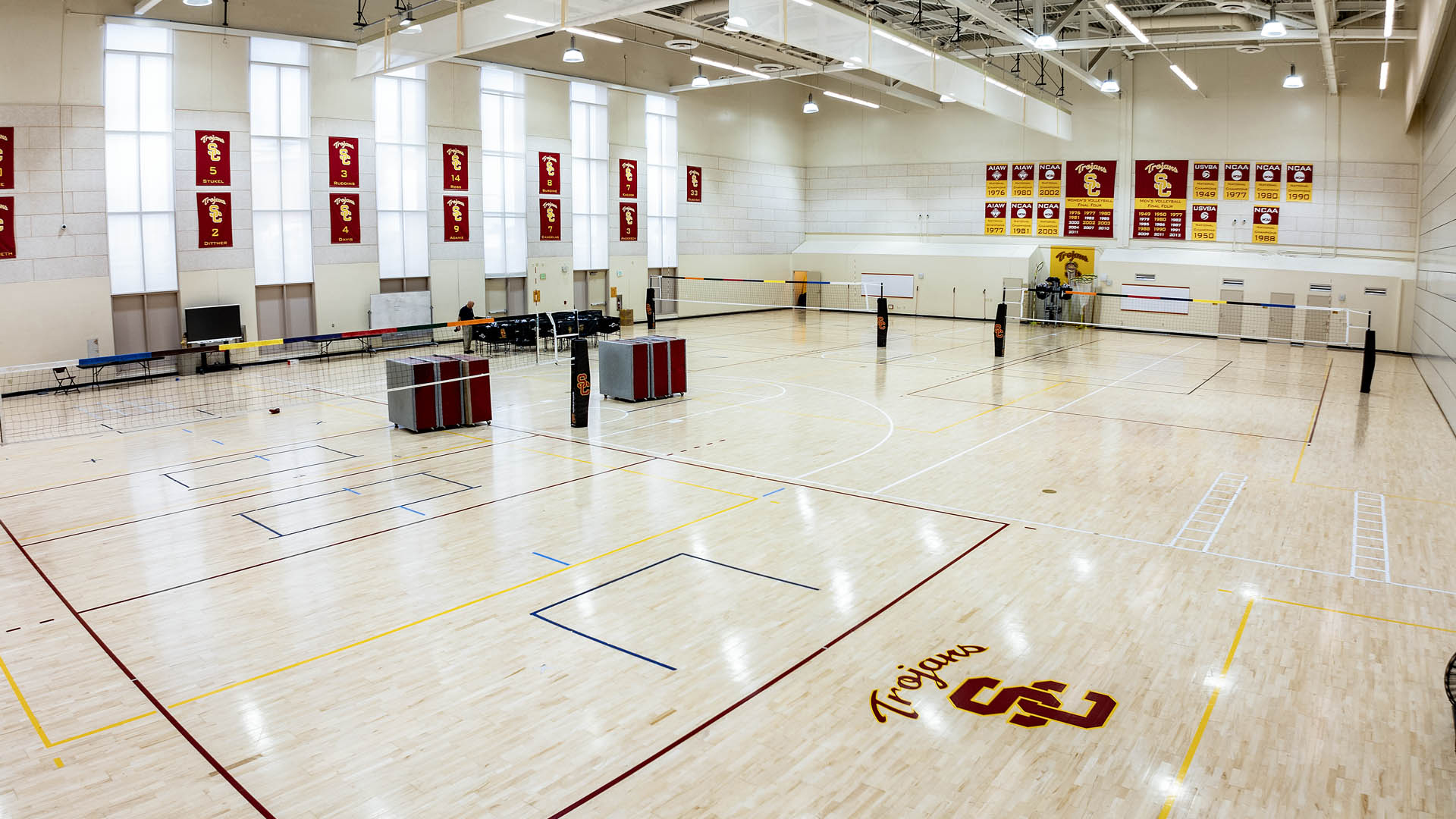

The lighting layout of the volleyball hall mainly uses direct lighting fixtures. The direct lighting fixtures layout can give full play to the effectiveness of the sports lighting system. It has high efficiency and good energy saving effect. It is currently the mainstream system worldwide.

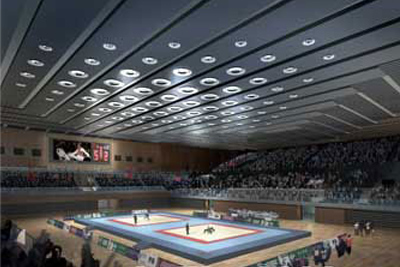

It is more difficult to broadcast fencing competitions on television because athletes in fencing competitions tend to start suddenly and draw their swords quickly. It is difficult for television broadcasts to capture such fast movements. Moreover, fencing requires a dark background so that the audience at the scene and in front of the TV can clearly see the rapid movement of the fencers in white competition uniforms and the bright steel swords. For fencers, the most important thing is to have uniform horizontal illumination
The color and reflectance of the background surface of the handball court should enable the ball to be clearly visible, there must be sufficient light above the PA, and glare to the players should be avoided when throwing the ball high.Handball courts should avoid glare to players, especially in corner kick areas where goalkeepers should not be exposed to direct glare from floodlights.
There should be good illumination and illumination uniformity at higher heights above the competition venue, but glare to athletes should be avoided.There should be no shadows on the table tennis table,and the influence of shadows from the surrounding protective panels should also be avoided.The ratio of vertical illumination on the four sides of the playing field should not be greater than 1.5.

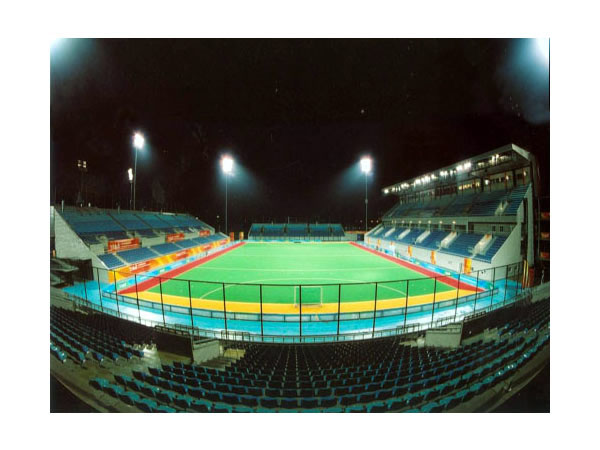

There is a barrier-free area around the hockey field, and light poles and lighthouses are absolutely not allowed to be installed in the barrier area. The minimum barrier-free area is: 5m from both bottom lines and 4m from both sidelines.

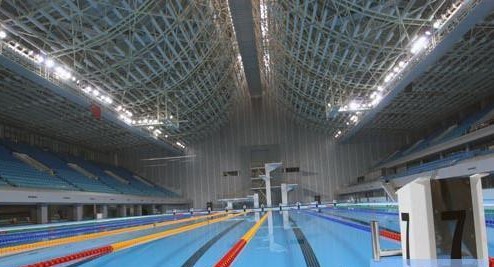

Artificial light and natural light reflected from the water surface should be avoided to cause glare to athletes, referees, cameras and spectators.The reflectance of the wall and ceiling shall not be less than 0.4 and 0.6 respectively, and the reflectance of the pool bottom shall not be less than 0.7.Sufficient vertical illumination should be ensured in a 2m area around the swimming pool and a height of 1m.The values of Ra and Tcp for V level in outdoor venues should be the same as those for VI level.
The surface color and reflectance of the background (wall/or ceiling) should provide sufficient contrast with the ball.
There should be sufficient illumination above the competition venue, but glare to athletes should be avoided.

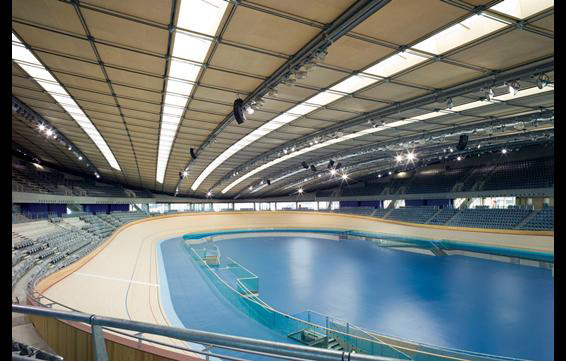

There should be good lighting uniformity on the track and glare for riders should be avoided.
There should be sufficient vertical illumination at the end of the track to meet the requirements of the timing equipment.The track surface should be made of diffuse material to prevent reflected glare.The values of Ra and Tcp for V level in outdoor venues should be the same as those for VI level.
There must be no shadows in the PA area. There should be enough contrast between the ball and thebackground.

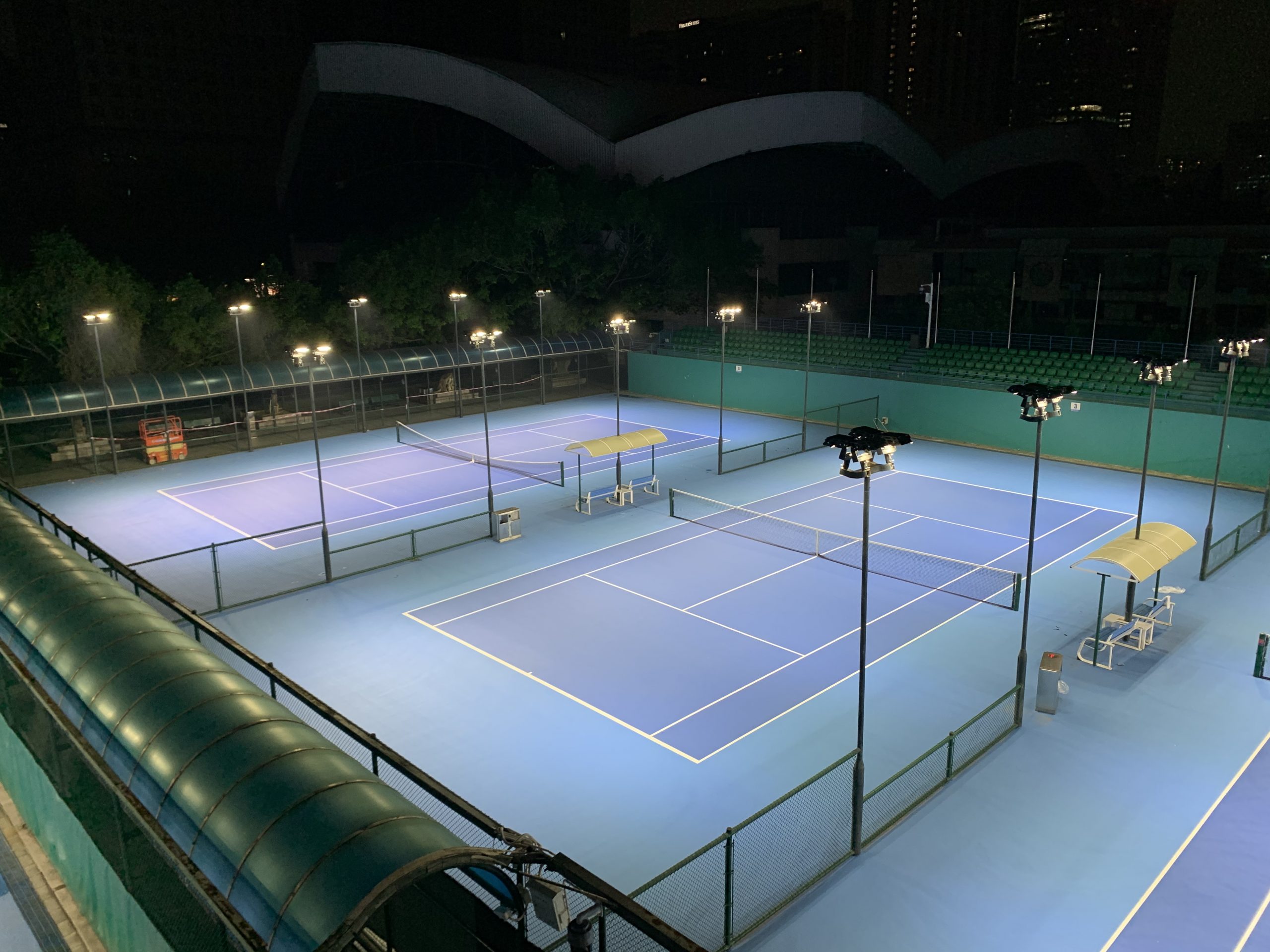

Glare should be avoided in the main direction of movement, especially when lobbing.Indoor tennis courts should not have natural lighting. If natural lighting is used,measures should be taken to prevent high-brightness areas from interfering with athletes.
Why you must choose Gesp Lighting?
Gesp Sports Lighting has been providing high-efficiency sports LED lightings and a series of sports lighting solutions worldwide since 2013.
Free product samples for potential big clients, showcasing our commitment to their success.

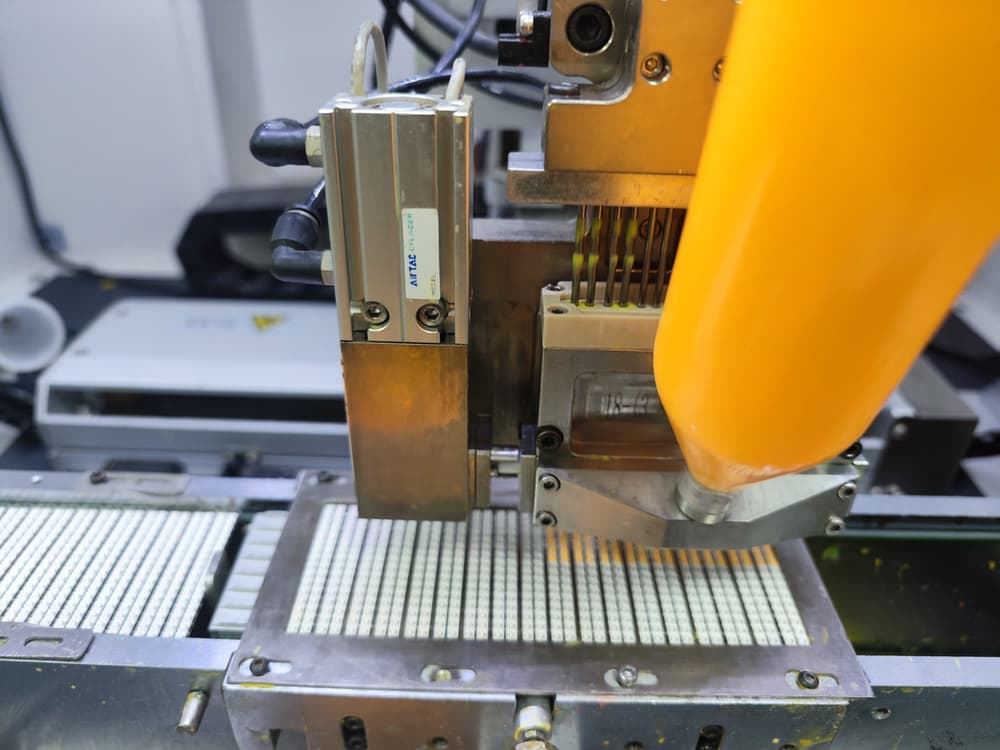

With robust ODM and OEM capabilities, we possess the expertise and resources to seamlessly design and manufacture both custom and off-the-shelf products.
End-to-end solutions that encompass product design, manufacturing, installation, commissioning, and after-sales support, providing you with a seamless and hassle-free experience.
